Dimensions / Geometry
Based on OEM Badge (Mazda Part No. NF6W-51-771 [deck lid emblem]), the following specs apply:
Body model
- Rear/base footprint

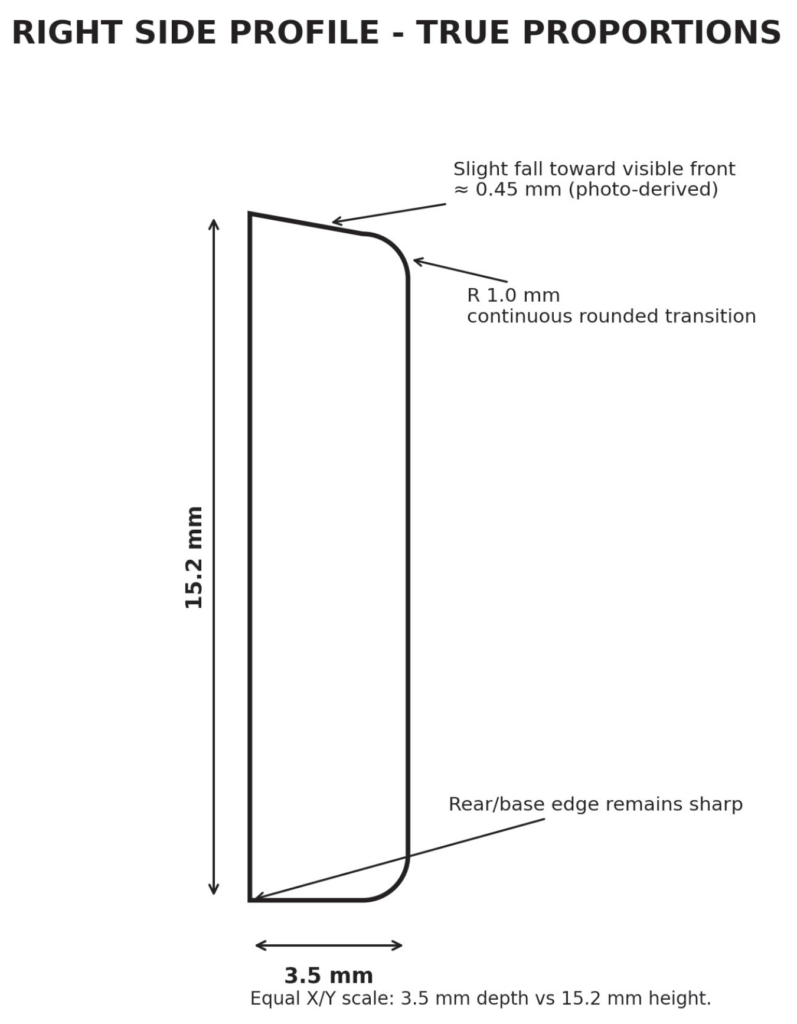

105.2 x 15.2 mm - Body depth
3.5 mm - Top surface fall rear -> front
0.45 mm - Front perimeter
single continuous fillet R 1.00 mm - No straight chamfer segment between two radii
- Rear/base perimeter edge in depth direction remains sharp
- Plan-view corner radius used
1.50 mm - Adhesive and release liner omitted

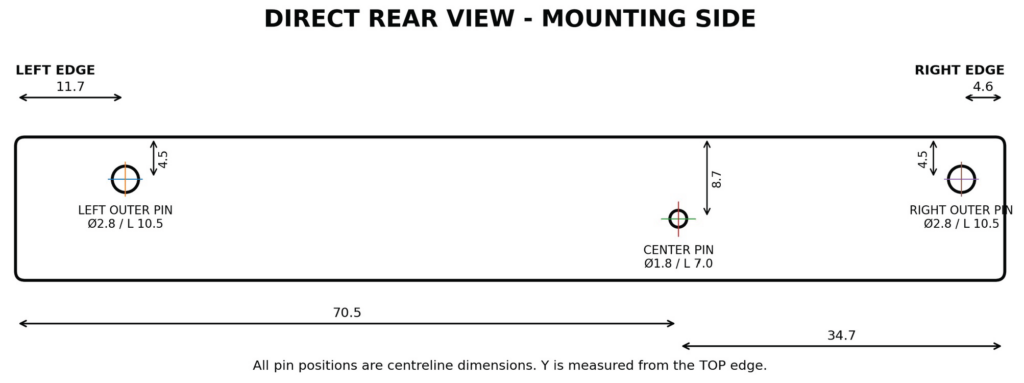

Pins (rear view; origin upper-left)
- Left
X 11.7 mm, Y 4.5 mm, diameter 2.8 mm, length 10.5 mm - Centre
X 70.5 mm, Y 8.7 mm, diameter 1.8 mm, length 7.0 mm - Right
X 100.6 mm, Y 4.5 mm, diameter 2.8 mm, length 10.5 mm

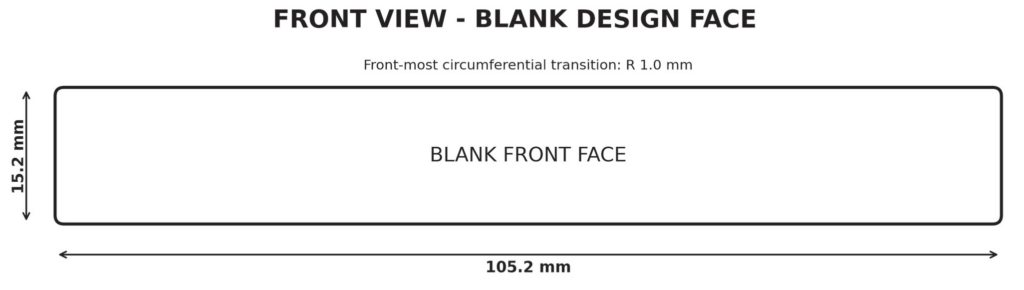

Views
Minimum production requirements
- Base body dimensions match exactly (105.2 x 15.2 mm)
- Badge has chrome finish
- Content is slighty inset and of glossy appearance, with content elements being black and/or red
- Material (ABS, …) must be non-corrosive and must be of automotive industry quality, therefore last at least 8 years of outdoor use, withstanding UV rays, heat, pressure washing, harsh weather conditions etc.)
- Adhesive is of automotive industry quality, therefore last at least 8 years of outdoor use, withstanding UV rays, heat, pressure washing, harsh weather conditions etc.)
Badge fixation pins are desirable, but not necessary. If Badge can be produced with fixation pins, they MUST meet exact specifications.

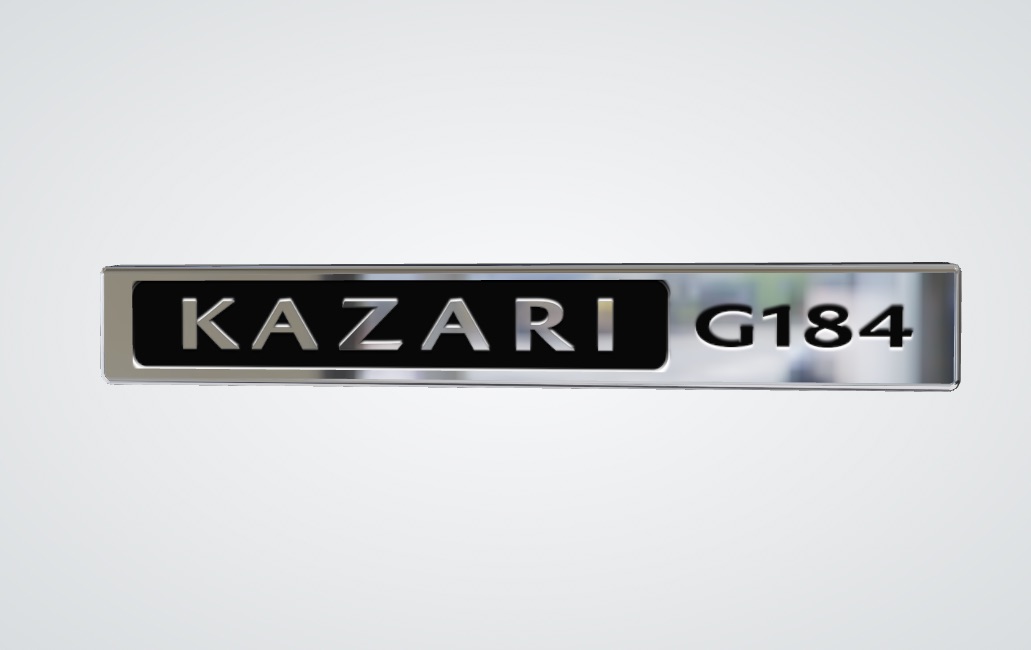

Badge Content
Content consists of two elements:
- KAZARI (inverted)
- G184
Content is provided in vector format (SVG) with characters being transformed to curves.
Visualization
Files
Content
